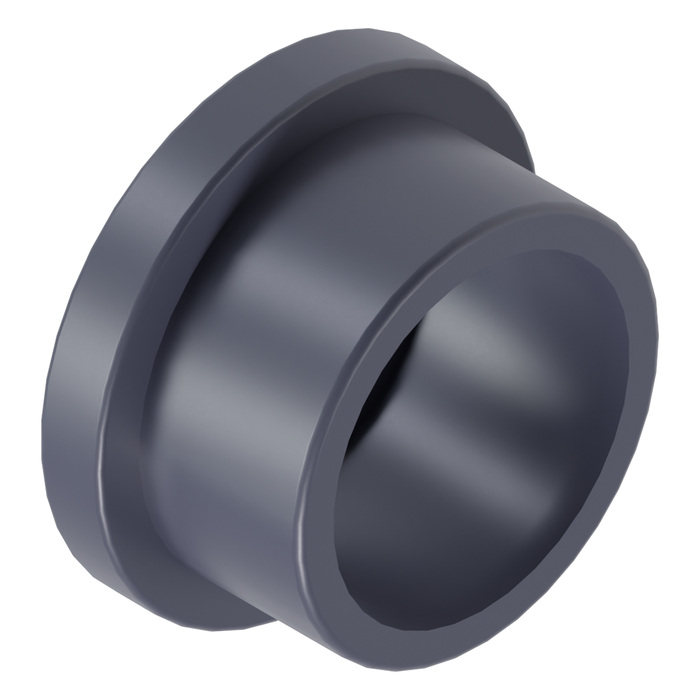

Flange adaptor (stub flange) PVC-U CEPEX UP.10.SF 32 mm

Manufacturer: CEPEX
Manufacturer’s index
REF
AQB index
EAN

Flange adaptor (stub flange) PVC-U CEPEX UP.10.SF 32 mm

Technical specification

Technical data
Material	PVC-U
Type	Flange adaptor (stub flange)
Connection diameter	32 mm
Nominal pressure (PN)	PN 16 (16 bar)
Connection type	Solvent socket (SW)
Series	UP.10.SF
Weight per pc	0,028 kg
	—

Size table

Code

REF

Socket diameter

Nominal diameter

Nominal pressure PN

Net priceGross price

07692

05 10 020

20 mm

DN15

16 bar

3,00 €3,00 €

View

07693

05 10 025

25 mm

DN20

16 bar

3,00 €3,00 €

View

07694

05 10 032

32 mm

DN25

16 bar

3,00 €3,00 €

View

07695

05 10 040

40 mm

DN32

16 bar

4,00 €4,00 €

View

02020

05 10 050

50 mm

DN40

16 bar

5,00 €5,00 €

View

02021

05 10 063

63 mm

DN50

16 bar

9,00 €9,00 €

View

02022

05 10 075

75 mm

DN65

16 bar

13,00 €13,00 €

View

02023

05 10 090

90 mm

DN80

16 bar

16,00 €16,00 €

View

02024

05 10 110

110 mm

DN100

16 bar

21,00 €21,00 €

View

02025

05 10 125

125 mm

DN110

16 bar

46,00 €46,00 €

View

02026

05 10 140

140 mm

DN125

16 bar

49,00 €49,00 €

View

02027

05 10 160

160 mm

DN150

10 bar

55,00 €55,00 €

View

02028

05 10 200

200 mm

DN175

10 bar

106,00 €106,00 €

View

02029

05 10 225

225 mm

DN200

10 bar

114,00 €114,00 €

View

02030

05 10 250

250 mm

DN225

10 bar

241,00 €241,00 €

View

02031

05 10 315

315 mm

DN300

10 bar

374,00 €374,00 €

View

05341-IT

05 10 400

400 mm

DN375

6 bar

843,00 €843,00 €

View

05342-IT

05 10 402

500 mm

DN480

4 bar

898,00 €898,00 €

View
