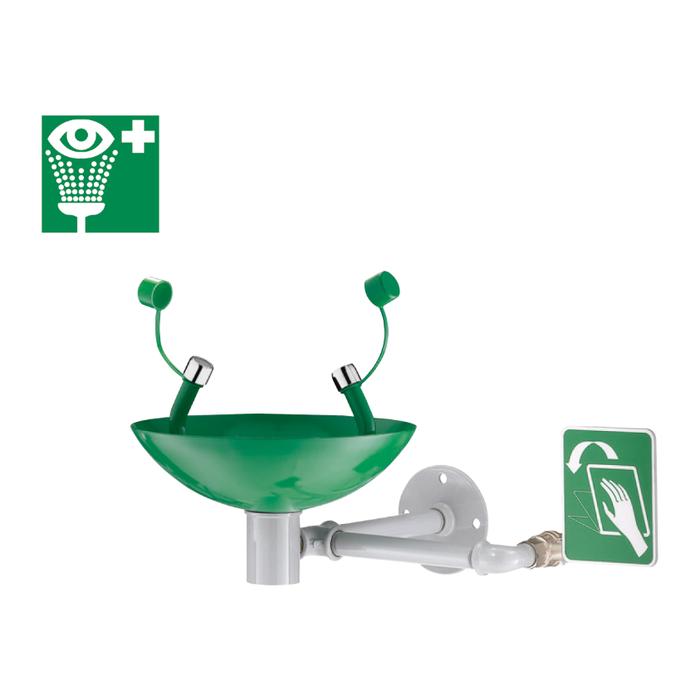

DELABIE wall-mounted safety eye wash with bowl, manually operated
Hand-operated wall-mounted eyewash, with Ø250 mm 304 Inox bowl, green epoxy finish and 2 spray heads with ABS dust caps. Maintenance without removal. With pictogram.
Equipment:
- Ø250 mm bowl made of AISI 304 stainless steel with green epoxy coating
- Two nozzles with protective caps made of impact-resistant green ABS, automatically ejected when flow is activated
- Galvanized steel pipes with gray epoxy coating
- Activation plate made of galvanized steel with green epoxy coating
- Quick opening and closing via ¼ turn valves made of nickel-plated brass
- Aerators with double stainless steel filters
- Wall mounting with brass rosette (screws not included)
- Standardized first aid safety sign "eye wash"
Operation:
- Activated by pushing the plate by hand – flow continues even after release
- Flow stopped by pulling the plate in the opposite direction
- Flow rate 20 l/min at 3 bar dynamic pressure
- Water supply G 1/2˝
